Industrial Machine Installation: A Guide to Leveling, Anchoring and Grouting

Industrial machinery depends on more than simply positioning equipment on a concrete floor. Proper machine installation establishes the foundation for accurate alignment, stable operation and long-term equipment performance.

For CNC machines, presses, injection molding equipment and other heavy industrial machinery, installation typically involves several connected processes: machine leveling, vibration isolation, anchoring and grouting.

Why Proper Machine Installation Matters

Even relatively small installation errors can affect machine accuracy and repeatability. An improperly leveled machine may experience uneven loading, alignment problems, increased vibration or premature wear.

Wilrep’s machine installation solutions are designed to support, align, anchor and stabilize industrial equipment while addressing the specific requirements of the application.

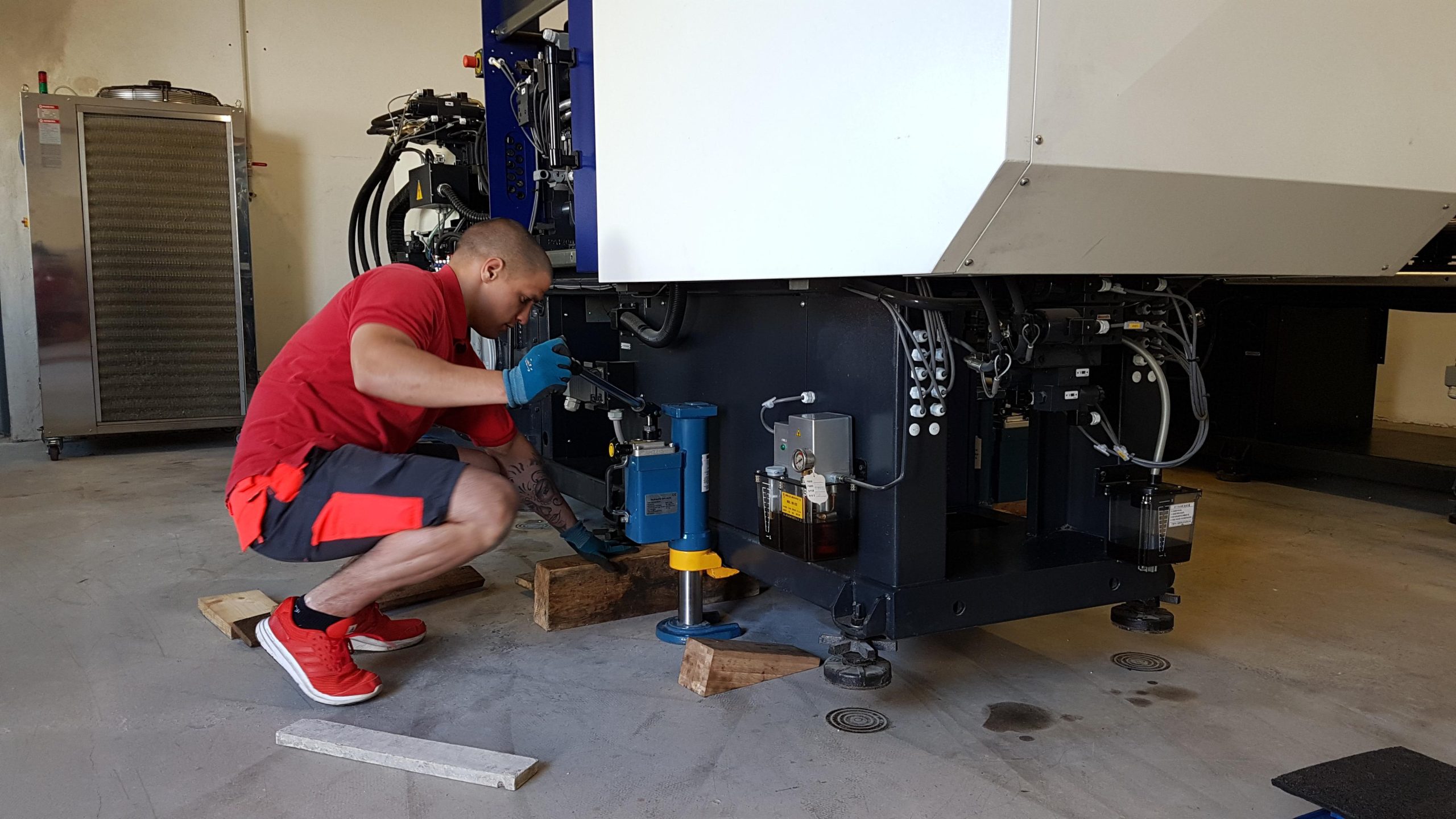

Step 1: Establish Accurate Machine Leveling

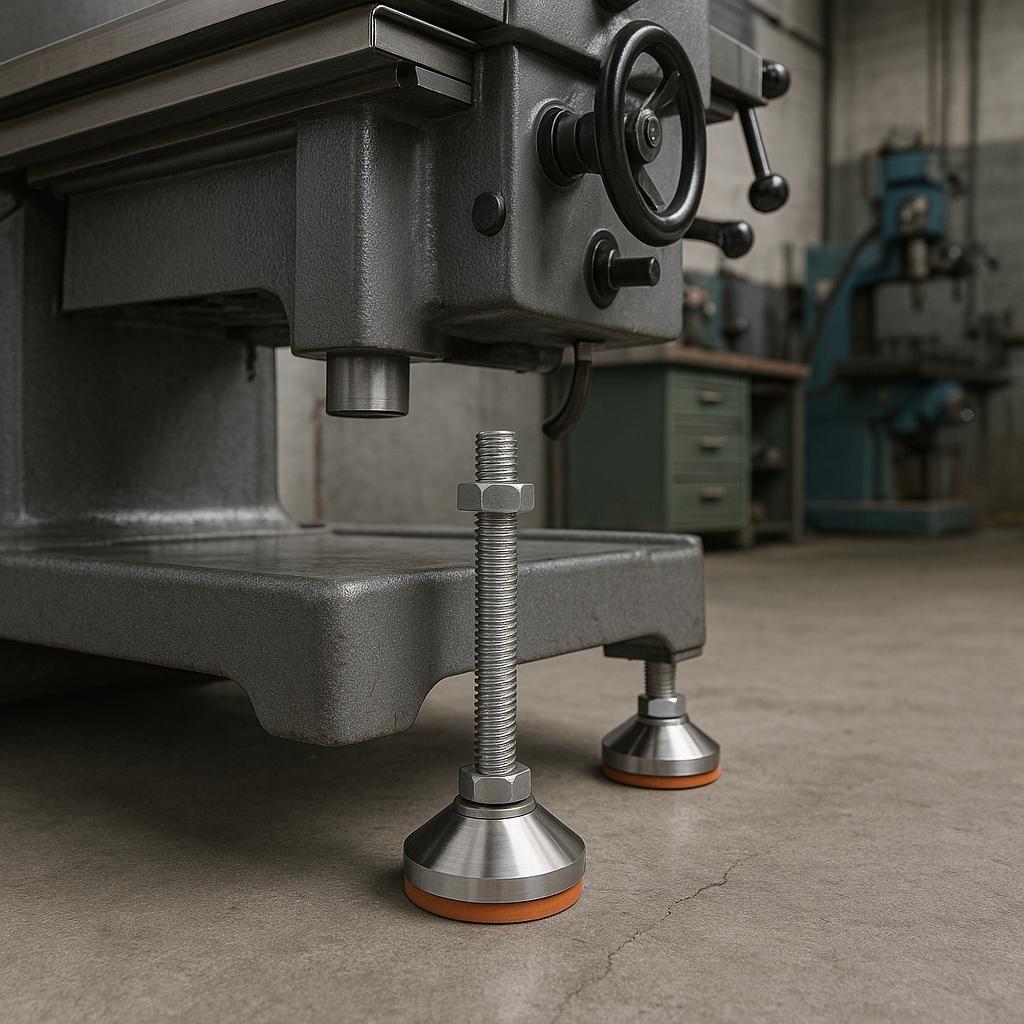

Machine leveling is used to establish the correct position of equipment and distribute loads consistently across the machine supports.

Products such as UNISORB Level-Rite Mounts provide adjustable leveling and alignment for a wide range of machinery. Wilrep’s Level-Rite information also describes their use for leveling, aligning and vibration isolation.

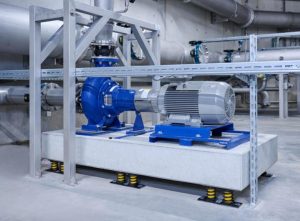

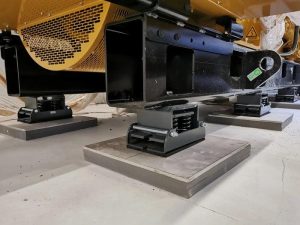

Step 2: Consider Vibration Isolation

Leveling alone does not necessarily control machine vibration. Depending on the equipment and operating conditions, vibration isolation may be required to reduce the transmission of machine-generated vibration into the supporting structure.

Wilrep offers vibration mounts, isolation pads and other solutions designed around load, frequency and operating conditions.

Step 3: Anchor the Equipment

Anchoring can provide additional resistance to movement and help maintain the required equipment position. The appropriate anchoring method depends on the machine, foundation and installation requirements.

Wilrep offers anchoring products including RK Fixators and Vector Anchor Bolts.

Step 4: Use Precision Machine Grouting Where Required

Grouting creates the interface between the machine base and foundation. Wilrep’s Premium Machine Grout is described as a cement-based, non-shrink grout designed for machine installation, anchoring and grouting applications.

A Complete Installation Strategy

The best machine installation approach considers the entire system rather than treating leveling, anchoring, grouting and vibration isolation as separate problems.

The correct combination depends on equipment type, operating loads, vibration characteristics, foundation conditions and required alignment.

Need help selecting machine installation products? Contact Wilrep for application-specific guidance and product recommendations.
