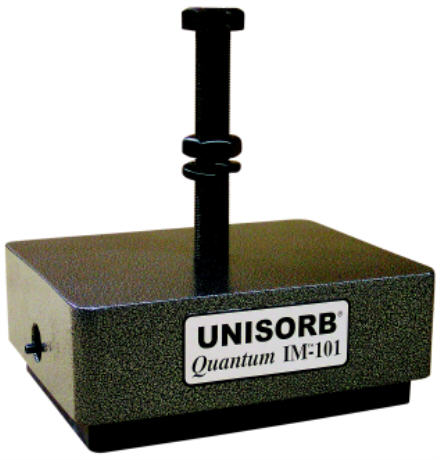

Unisorb IM-Injection Molding Machine Mounts

https://wilrep.com/Leveling%20and%20Isolation/Unisorb IM Mounts provide optimum levelling and alignment in minutes, without anchoring either the machine or the mounts to the floor. Designed especially for injection molding and die casting machines. Unisorb IM mounts dampen both vertical and horizontal impacts found in reciprocating machines. Unisorb IM mounts meet OSHA requirements.

Isolation and secure anchoring for Injection Molding Machines

IM Mounts are designed for applications requiring accurate leveling and secure lateral anchoring for todays high speed Injection molding machines. They are well-suited for medium to high load machinery where long term performance is required.

These mounts provide consistent load distribution and effective damping, helping to maintain machine accuracy while preventing machine movement or walking.

Unisorb IM Mounts offer these benefits:

  • Increased equipment life
  • Simplified machine installation
  • Fast, accurate alignment
  • Reduce shock and vibration
  • Uneven floors accommodated
  • Machine ‘walking’ prevented
  • Horizontal impact capabilities
Specifications
Model Number
Length
Width
(Min.)   (max.)
Adjusting Bolts
(metric)
Max. Load (Lbs.)

IM – 51
5.50
3.50
2.50
3.88
M12 thru M16
3,000
IM – 61
7.00
4.50
2.50
3.88
M16 thru M24
6,000
IM – 71
8.00
5.00
2.50
3.88
M20 thru M24
9,000
IM – 81
8.00
5.88
2.50
3.88
M20 thru M30
up to 16,000
IM – 101
10.00
7.88
3.25
4.63
M24 thru M42
up to 25,000
IM – 121
12.50
9.00
3.50
4.88
M24 thru M48
up to 35,000
IM – 161
16.00
12.5
4.50
5.88
M30 thru M56
up to 60,000



* Length, width and height are in inches.

Applications and Selection of Unisorb IM Mounts

Unisorb IM Mounts are designed specifically for injection molding and die casting equipment where accurate leveling, stable positioning, and vibration control are important. The mounts provide adjustable support between the machine and floor while allowing the equipment to be leveled without conventional anchoring methods.

The available IM models accommodate different machine sizes and loading requirements. Models range from IM-51 with a maximum load of 3,000 lbs. per mount through IM-161 with a maximum load of up to 60,000 lbs. per mount. This range allows the mounting system to be selected according to the equipment’s weight and installation requirements.

The mounts also provide an adjustment range of approximately 1-3/8 inches on the smaller models, with larger models offering greater adjustment ranges. This makes them useful when installing machinery on floors that are not perfectly level and helps simplify the final alignment of the equipment.

Benefits for Injection Molding Equipment

Properly selected and adjusted IM Mounts help maintain consistent machine positioning during operation. Their design provides load distribution while helping control shock and vibration generated by reciprocating machinery. The mounts also help prevent machine movement or “walking” and provide horizontal impact resistance.

For injection molding installations, this can make machine setup and leveling more straightforward while supporting stable operation over time. The technical specifications should be reviewed when selecting the appropriate IM Mount model based on machine load, mounting dimensions, adjustment requirements, and bolt size.
