Novibra Type M

The M mount is ideal for applications involving isolation of low frequency vibrations in all planes. The M is also suitable for shock attenuation due to the ability to offer large deflections. This mount provides excellent vibration isolation for compressors, fans, pumps and electronic equipment.

• COMBUSTION ENGINES  •COMPRESSORS
• FANS • PUMPS • SENSITIVE ELECTRONIC EQUIPMENT

   Click here for Novibra Type M Technical Data Sheet

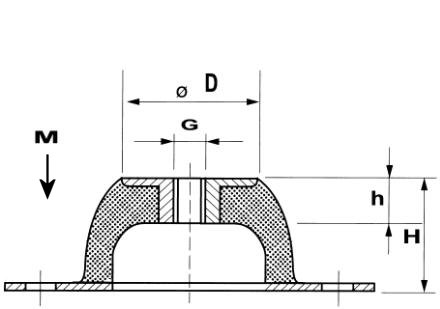

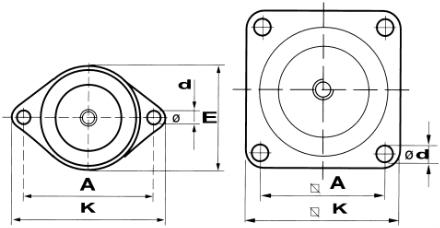

Type D E A K H h d G
Kg 		Weight
KG 		M-MAX (Kg)
A
40°IRH		 B
60°IRH
M7
18
43
50
64
20
7
7.0
M6
0.02
3.5
9
M25
33
56
66
85
25
11
8.0
M8
0.07
20
50
M50
45
76
92
114
35
14
10.0
M10
0.16
40
80
M100
53
96
110
136
40
15
11.5
M10
0.26
70
150
M200
58
101
124
151
45
13
11.5
M12
0.42
130
220
M400
78
-
120
150
63
18
14.5
M12
1.06
280
500
M600
100
-
160
200
85
25
14.5
M16
2.35
380
750
M1500
186
-
250
310
160
43
18.0
M24
9.43
1400
2500

*Dimensions are in mm.
