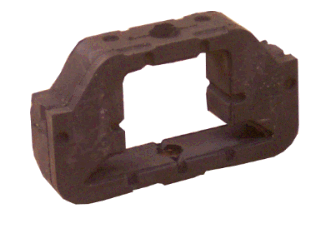

Novibra Type BA

Click here for Novibra BA Technical Data Sheet

Novibra Type BA utilizes bonded rubber in a shear to permit relatively high deflection to occur, thus providing excellent isolation of low frequencies.

Common Uses:

Lights
Fans
Compressors
Portable Gensets
Pumps
Computers
Electronic Units
Transit Cases
Measuring & Test Instruments
Gauging Equipment

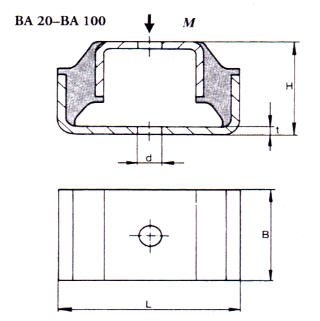

Type	B	L	H	A	d	t	Weight (kg)	A Hardness	B Hardness
BA 20 / 2	20	90	58	62	8	4	0.09	12	27
BA 20	20	90	50	-	10	4	0.16	20	35
BA 50	50	90	50	-	12	4	0.42	60	110
BA 100	100	90	50	-	15	4	0.83	130	250
